Indexed by:
Journal paper
-
First Author:
Botao Deng
-
Correspondence Author:
Chaotan SIMA
-
Co-author:
Hongyu Tan,Xiaohang Zhang,Zhenggang Lian,Guoqun Chen,Qianqing Yu,Jianghe Xu,LIU DE MING
-
Journal:
Frontiers of Optoelectronics
-
Included Journals:
EI
-
Discipline:
Engineering
-
First-Level Discipline:
Other specialties in Optical Engineering
-
Document Type:
J
-
Volume:
14
-
Issue:
4
-
Page Number:
407-413
-
ISSN No.:
2095-2767
-
Key Words:
antiresonant fiber (ARF), stepped refractive indices, confinement loss, bending loss, laser pumping
-
CN No.:
10-1029/TN
-
DOI number:
10.1007/s12200-020-1109-9
-
Date of Publication:
2021-01-05
-
Abstract:
With the benefits of low latency, wide
transmission bandwidth, and large mode field area,

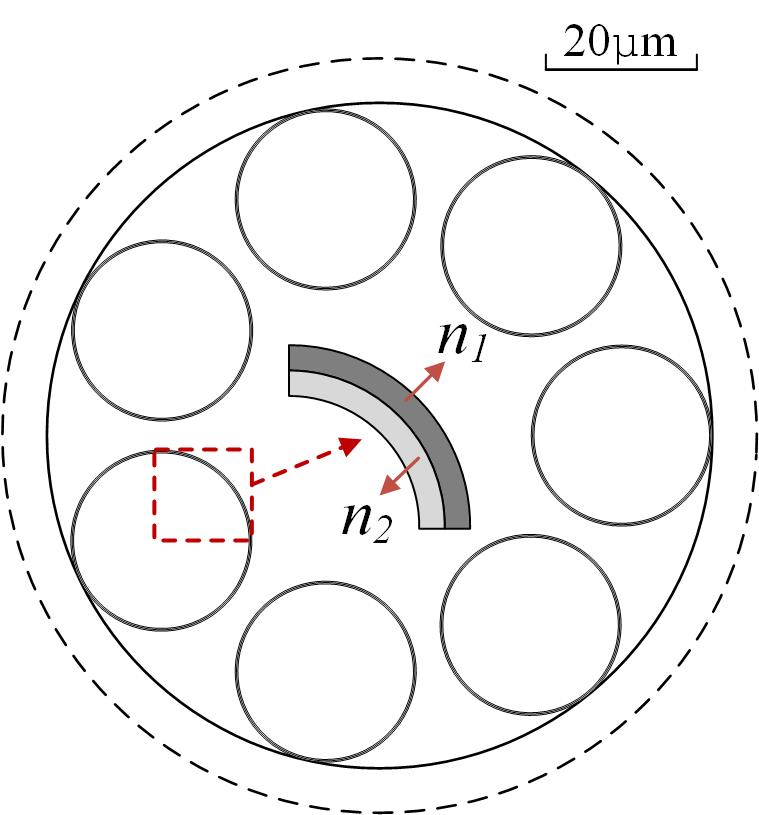

hollow-core antiresonant fiber (HC-ARF) has been a research hotspot in the past decade. In this paper, a hollow core step-index antiresonant fiber (HC-SARF), with stepped refractive indices cladding, is proposed and numerically demonstrated with the benefits of loss reduction and bending improvement. Glass-based capillaries with both high (n = 1.45) and low (as low as n =
1.36) refractive indices layers are introduced and formatted in the cladding air holes. Using the finite element method to perform numerical analysis of the designed fiber, results show that at the laser wavelengths of 980 and 1064 nm, the confinement loss is favorably reduced by about 6 dB/km compared with the conventional uniform cladding HCARF. The bending loss, around 15 cm bending radius of this fiber, is also reduced by 2 dB/km. The cladding air hole radius in this fiber is further investigated to optimize the confinement loss and the mode field diameter with
single-mode transmission behavior. This proposed HCSARF has great potential in optical fiber transmission and high energy delivery.
-
