魏青松

个人信息

Personal information

教授     博士生导师     硕士生导师

性别:男

在职信息:在职

所在单位:材料科学与工程学院

学历:研究生(博士)毕业

学位:博士学位

毕业院校:华中科技大学

学科:材料加工工程
学术荣誉:
2016    华中学者
曾获荣誉:
2017    华中科技大学学术前沿青年团队负责人
2017    黄鹤英才“专项”计划
2016    江苏省双创人才
2016    华中科技大学师德三育人奖

New insight into the strengthening mechanism of AlCoCrFeNi2.1 eutectic high-entropy alloy with dual-phase nanolamellar structures achieved via laser powder bed fusion
发布时间:2023-10-07  点击次数:

论文类型:期刊论文
发表刊物:Materials Science and Engineering: A
收录刊物:SCI
文献类型:J
关键字:Eutectic high-entropy alloys;Laser powder bed fusion;Dual-phase nanolamellar structures;Deformation mechanism;Strengthening mechanism
发表时间:2023-10-05
影响因子:6.4

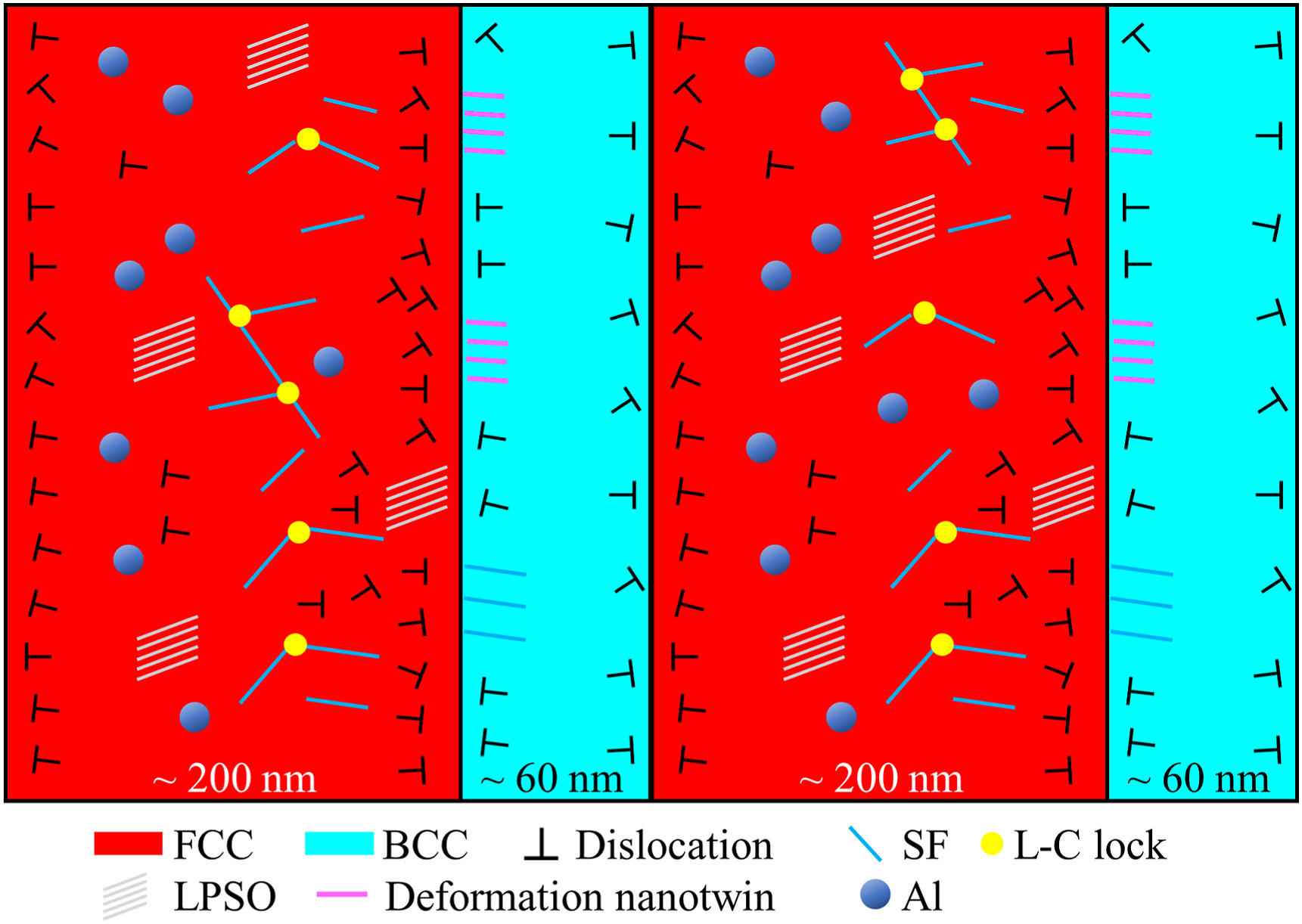

摘要:Recently, the AlCoCrFeNi2.1 eutectic high-entropy alloy (EHEA) prepared by laser powder bed fusion (LPBF) could reach a good balance of strength and ductility. The strengthening effect was only qualitatively clarified, however, quantitative analysis remained unclear. In this study, the quantitative analysis of strengthening mechanisms and the relationship between microstructural characteristics and tensile properties were revealed in depth. The AlCoCrFeNi2.1 EHEA with FCC and BCC dual-phase nanolamellar structures (interlamellar spacings of 200–300 nm) fabricated by LPBF achieved an excellent combination of high yield strength (1116 MPa) and fracture elongation (20.3 %). Compared with as-cast EHEA samples, the FCC/BCC nanolamellar interfaces in the LPBF-printed AlCoCrFeNi2.1 EHEA were still semi-coherent but with a higher degree of coherency, and the Al concentration in the FCC phase increased. Post-deformation analysis showed that there were high-density dislocation pile-up and slip, stacking faults (SFs), and Lomer-Cottrell (L-C) locks in the FCC phase, and there were deformation nano-twins and SFs in the BCC phase. The back stress generated in FCC/BCC phases during tensile deformation could maintain the plastic co-deformation of the two phases. The theoretical calculation revealed that the strengthening mechanisms mainly stemmed from the nanolamellar structures, dislocation strengthening, and the solution strengthening induced by the increased Al concentration in the FCC phase. The calculated result (1096.3 MPa) was consistent with the experimental value, and the nanolamellar structures strengthening (∼720.7 MPa) was the main contributor. This work provides a theoretical quantitative understanding of the strengthening mechanism of the AlCoCrFeNi2.1 EHEA fabricated by LPBF and references for the strengthening mechanism of additively manufactured EHEAs.
发布期刊链接:https://doi.org/10.1016/j.msea.2023.145784
